Tern

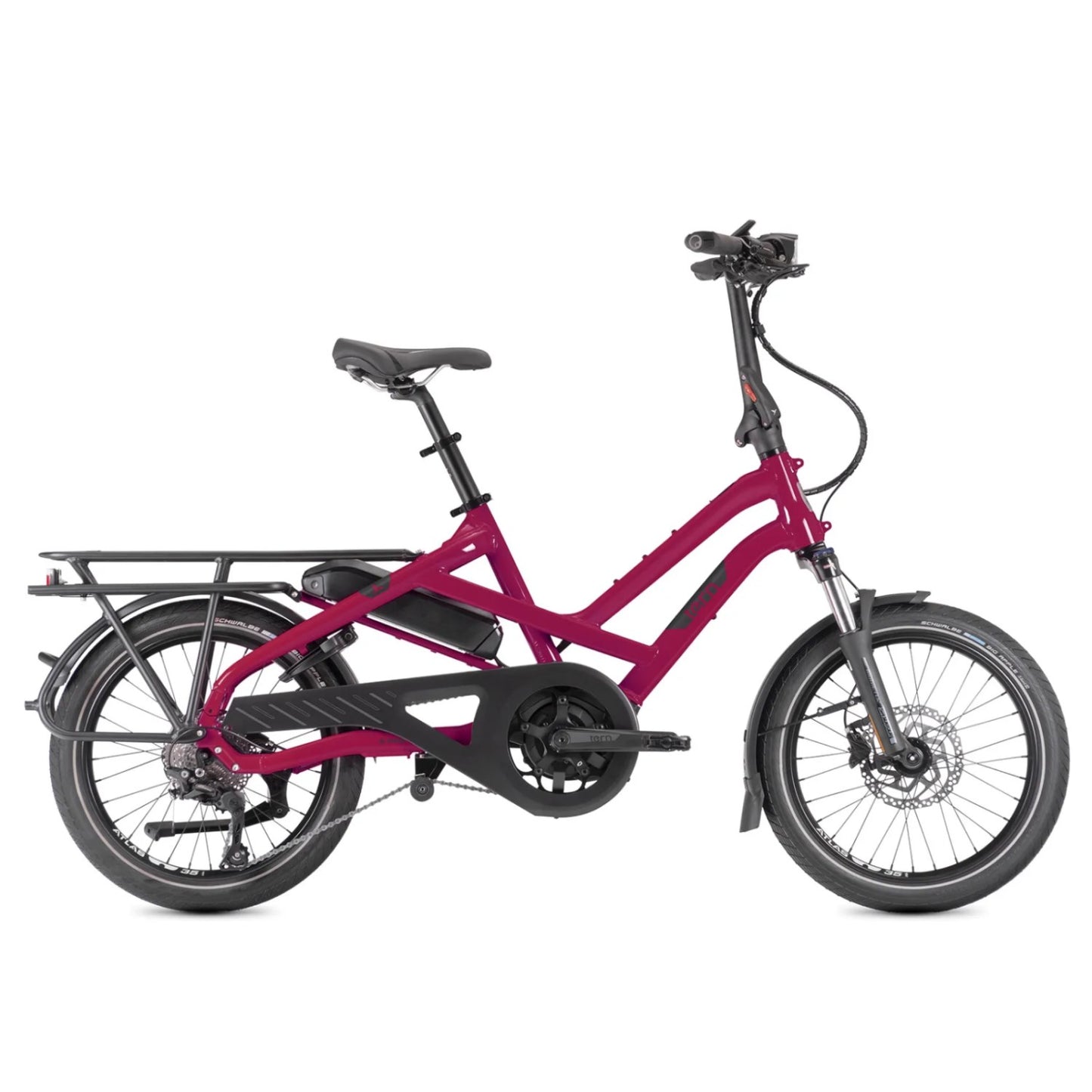

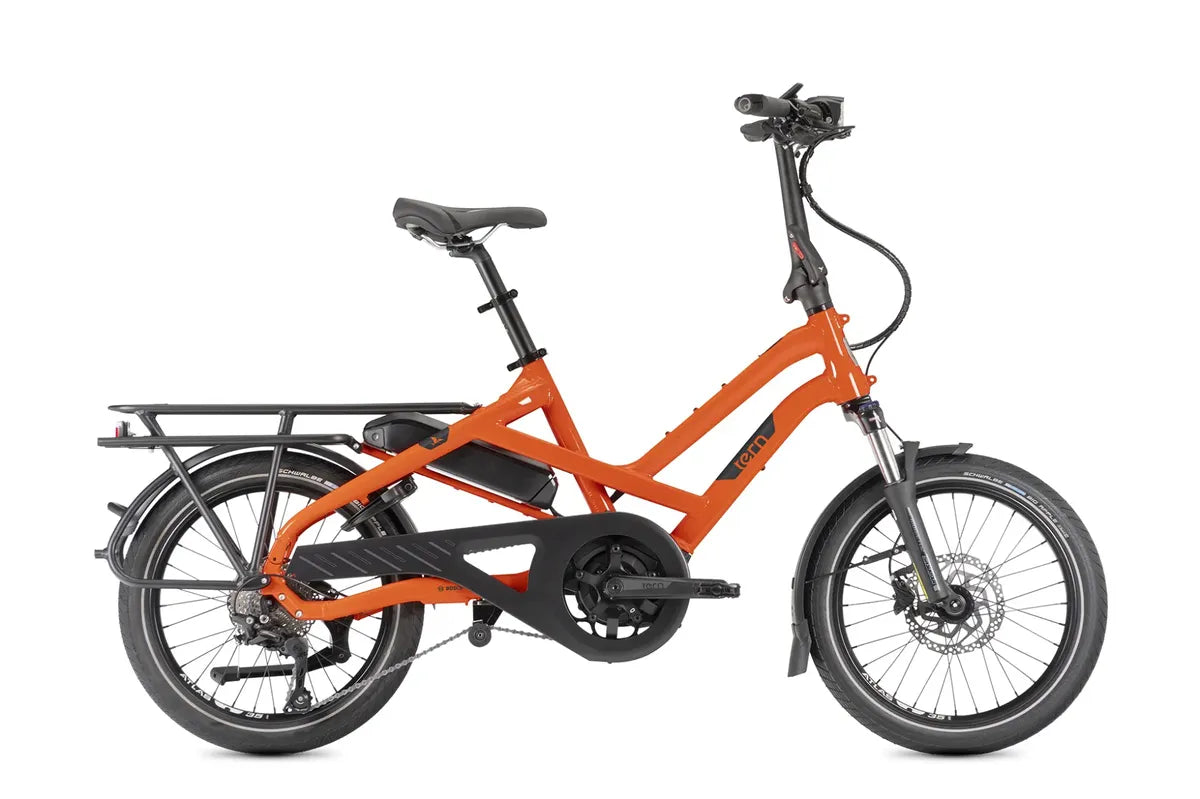

Tern HSD G2 P10
Tern HSD G2 P10
Regular price
$6,995.00 NZD
Regular price
$8,395.00 NZD
Sale price
$6,995.00 NZD
Unit price
per
Shipping calculated at checkout.
WHAT MAKES IT A P10?
- Bosch Performance Line motor with Bosch Smart System provides up to 75 Nm of torque and increases your pedaling power by up to 340%
- Detachable and easy-to-understand Intuvia 100 display
- 1x10-speed Shimano Deore groupset with trigger shifter
HSD HIGHLIGHTS
- Control all Smart System functions at your fingertips via the Bosch eBike Flow App: keep your e-bike system up-to-date with over-the-air updates, activate the eBike Lock, customize riding modes, view bike information, connect to dealers, and more!
- Bosch PowerPack 545 battery provides long range of up to 121 km
- Cargo and passenger-ready: large rear rack capacity of 80 kg means you can carry one infant to a medium-sized adult passenger, or lots of cargo
- Fits riders 150 - 195 cm with an easily-adjustable cockpit
- Tested for safety and reliability: frame and fork are EFBE-tested up to the 180 kg Maximum Gross Vehicle Weight
GENERAL INFO
| SPEEDS | 1 x 10 |
| WEIGHT | 27.6 kg |
| GEAR INCHES | 2.36 - 7.72 m |
| FOLDING SIZE | 165 × 39.5 × 87 cm |
| FOLDING TIME | 5 sec |
| FRAME SIZES | One size |
| DISTANCE (SEATPOST TO HANDLEBAR) | 54.5 - 62.5 cm |
| DISTANCE (SADDLE TO PEDAL) | 70 - 102.5 cm |
| SUGGESTED RIDER HEIGHT | 150 - 195 cm |
| MAX GROSS VEHICLE WEIGHT | 180 kg |
| MAX RIDER WEIGHT | 120 kg |
FRAME
| FRAME | Tern HSD, 6061-AL, patented design, Tern sliding dropouts, EFBE Tri-Test approved: 180 kg |
| FORK | Suntour custom for Tern, 1.5" tapered Chromoly steerer, 32 mm stanchions, Thru-axle, 70 mm travel, EFBE approved: 180 kg |
COCKPIT
| HANDLEPOST | Tern Physis 3D, 3D forged, 5 patented technologies, 12°, 290 mm |
| STEM | Tern Andros, adjustable, forged construction, patented technology |
| HEADSET |
Tern Flux Pro Taper by FSA, 1.5", angular contact bearings, Physis integrated
|
| HANDLEBAR |
Tern Sweep, 6061-AL, Tern Andros adapted
|
| GRIPS/BAR TAPE | Ergon |
| SADDLE | Tern Upright by Velo |
| SEATPOST | Tern Telescope, 34.9/30.9 mm, 2014-AL |
| SEATPOST CLAMP | Tern Collar |
BRAKES
| FRONT BRAKE | Tektro, hydraulic disc, 180 mm rotor |
| REAR BRAKE | Tektro, hydraulic disc, 160 mm rotor |
| BRAKE LEVERS | Tektro, hydraulic disc |
| BRAKE CABLE & HOUSING | Tektro, hydraulic disc |
WHEELS
| FRONT WHEEL | Tern Atlas H, cargo wheel |
| REAR WHEEL | Tern Atlas H, cargo wheel |
| FRONT HUB | Novatec, Thru-axle, sealed bearings |
| REAR HUB | Novatec, sealed cartridge bearing, disc |
| SPOKES AND NIPPLES | Stainless steel |
| RIMS | Tern Atlas H, wide 35 mm |
| TIRES | Schwalbe Big Apple, 55-406, puncture protection, Reflex |
TRANSMISSION
| SHIFTER(S) | Shimano Deore, 1 x 10 spd, trigger |
| REAR DERAILLEUR | Shimano Deore Shadow+ |
| CRANKSET | Tern HSD custom |
| CASSETTE/FREEWHEEL | Shimano 11-36T, 10 spd |
| BOTTOM BRACKET | Motor integrated |
| CHAIN | KMC 10 spd, for eBike, EPT corrosion resistant coating |
| PEDALS | Urban with non-slip surface |
| SHIFTER CABLE & HOUSING | Jagwire LEX-SL, slick treatment, alloy ferrules |
E-SYSTEM
| MOTOR | Bosch Performance, 340% Assist, 75 Nm Torque, max speed 32km/h |
| BATTERY | Bosch PowerPack 545 |
| DISPLAY | Bosch Intuvia 100 w/ LED remote, 4 mode selectable, walk assist, connectivity with Bosch eBike Flow app, electronic bike lock |
| LOCK & ALARM | Optional |
| RANGE | 545 Wh: 51-121 km |
| CHARGER | 240V, 4A (AU/NZ) |
BELLS & WHISTLES
| BELL | Pitch Plus, brass |
| CHAINGUARD | Tern Custom, full chain cover |
| KICKSTAND | Ursus, rear mount |
| LUGGAGE SOCKET | Combo Mount |
| FRONT LIGHT | Tern Valo Direct, 190 lumens |
| REAR LIGHT | Herrmans H-Trace, for eBike |
| FENDERS | SKS, stainless hardware |
| RACK(S) | Atlas H rack, Atlas Rack Mount, 6 point mounting, 80 kg capacity |
| ACCESSORY | ABUS, keyed-alike with Bosch battery |
